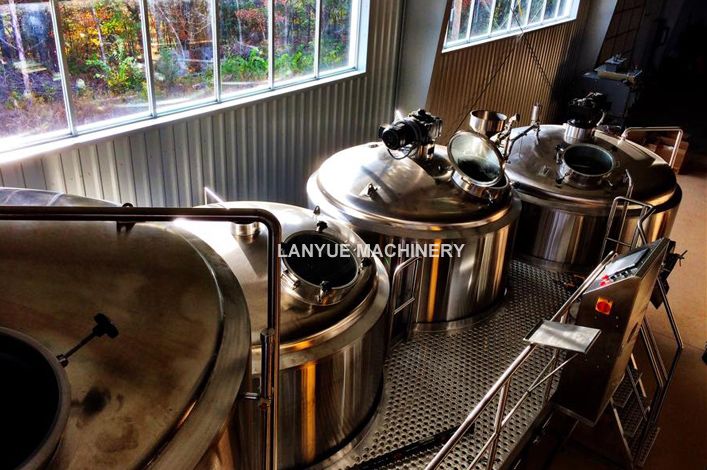

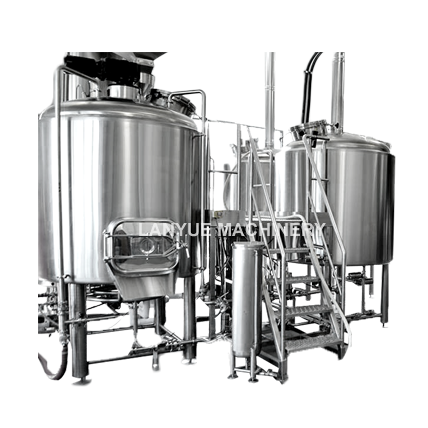

Mico-brew house from 1BBL-50BBL,all stainless steel manufacture.

All stainless steel (304) sanitary construction 100% TIG welded and sanitary polished with quality controls, inspection and pressure testing.



• Design pressure atmospheric

• 4 heavy duty stainless steel legs with leveling footpads

• Interior shell: 304 stainless steel, thickness 11 gauge (3mm)

• Exterior shell: 304 stainless steel, thickness 14 gauge (2mm)

• Interior and exterior finish bright polish to 3A 240 grit, sanitary surface

• Tri-clamp thermo well

• Top manway door

• 1.5” (38.1mm) Tri-clamp sanitary

• Lifting Lugs

• Fully welded exterior shell

• Tank complete with fittings, valves and all parts

• Light

• Polyurethane insulation thickness 3 1/8“(80mm) on side and bottom

• 8” (204mm) chimney with condensate drain



Mash tun only standard

• CIP arm and dual spray balls

• Side out manway door

• Recirculation manifold



OPTIONS

• Steam Heat Jackets

• Jacket design pressure 45PSI (0.3MPa) Test Pressure 60PSI (0.4MPa)

• Rakes

• Grist Hydrator

• Copper Cladding
